Descrição

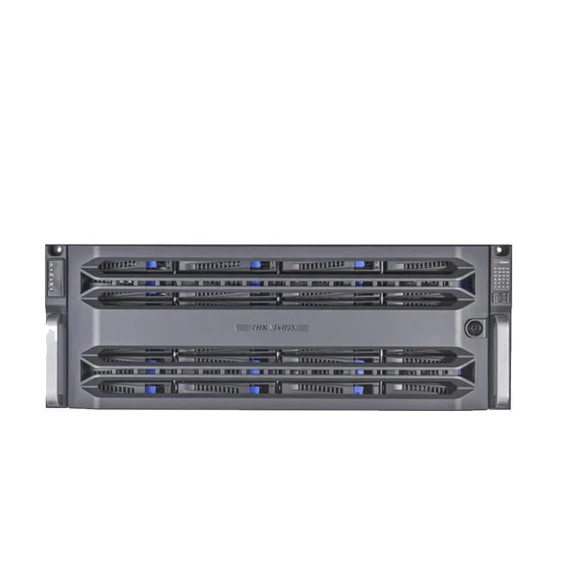

STORAGE HIKVISION DS-A72024R
24-SLOT HIGH-PERFORMANCE STORAGE
HIGH-PERFORMANCE, SCALABLE HARDWARE PLATFORM
HDD DETECTION AND REPAIR/RAID OPTIMIZATION
SURVEILLANCE-SPECIALIZED DIRECT STORAGE (DIRECT STREAMING MODE+IP SAN MODE)
ADVANCED DATA PROTECTION (SYNCHRONOUS BACKUP OF KEY INFORMATION IN SYSTEM DISKS)
ENERGY EFFICIENT AND USER-FRIENDLY UI.
REDE
PROTOCOLO
ISCSI, RTSP, ONVIF, PSIA
EXTERNAL INTERFACE
USB
4
VGA
1
DATA NETWORK INTERFACE
4, 1000M ETHERNET INTERFACE (4 × 1GBE OR 2 × 10GBE IS EXTENDABLE)
MINISAS INTERFACE
SUPPORTED
CONTROLLER PARAMETERS
SAS INTERFACE (UPPER-LEVEL)
COM
1, FOR HYPERTERMINAL OR UPS
HDMI
1
MANAGEMENT NETWORK INTERFACE
1, 100M ETHERNET INTERFACE
ARMAZENAMENTO
HDD SLOT
24
INTERFACE/CAPACITY
SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
HOT-SWAPPING
SUPPORTED
HDD SUPPORT
SINGLE, RAID(ENTERPRISE HARD DISK)
RAID
RAID 0, 1, 3, 5, 6, 10, 50, JBOD, HOT SPARE
PERFORMANCE
DIRECT STREAMING MODE: VIDEO (2 MBPS) + PICTURE
820-CH RECORDING + PLAYBACK
VIDEO PERFORMANCE
820
PICTURE PERFORMANCE
820
HARDWARE
ESTRUTURA
SERVER
PROCESSADOR
DUAL 64-BIT MULTI-CORE PROCESSOR
CACHE
8 GB (EXTENDABLE TO 128 GB)
STORAGE MANAGEMENT
DISK MANAGEMENT
DISK INSPECTION, ALARM AND REPAIR
GERENCIAMENTO DE VOLUME LÓGICO
ISCSI VOLUME, VIDEO VOLUME MANAGEMENT
RECORDING MANAGEMENT
MODO DE GRAVAÇÃO
TIMING RECORDING, MANUAL RECORDING, DUAL-STREAM RECORDING, ALARM RECORDING
VIDEO PROTECTION
LOCK KEY VIDEO, N+1 SERVICE PROTECTION, ANR, VIDEO LOSS DETECTION AND ALARM
SEARCHING MODE
SEARCH BY TIME AND EVENT
DOWNLOADING MODE
QUICK DOWNLOAD, BATCH DOWNLOAD, DOWNLOAD BY SEGMENT, DOWNLOAD BY MERGING
MANUTENÇÃO DE DISPOSITIVOS
MODO DE GERENCIAMENTO
WEB-BASED GUI, SERIAL PORT CLI, CENTRALIZED MANAGEMENT OF MULTIPLE DEVICES
MODO DE ALARME
SOUND, LIGHT, EMAIL, MESSAGE, WEB PAGE
LOG DOWNLOADING
DOWNLOAD NO WEB PAGE
HD
HDD MODEL
HIKVISION,HK7216AH,16T;
HIKVISION,HK7210AH,10T;
HIKVISION,HK728TAH,8T;
HIKVISION,HK726TAH,6T;
HIKVISION,HK724TAH,4T;
SEAGATE,ST16000NM000J,16T;
SEAGATE,ST10000NM017B,10T;
SEAGATE,ST8000NM017B,8T;
SEAGATE,ST6000NM019B,6T;
SEAGATE,ST4000NM000B,4T;
GERAL
FONTE DE ALIMENTAÇÃO
REDUNDANCY (1 + 1)
CHASSI
19-INCH 4U
CONSUMPTION(WITH HDDS)
OPERATING: = 410 W (1398 BTU WITH 24 HDDS RATED: = 875 W
ENVIRONMENT TEMPERATURE
OPERATING: 5 °C TO 35 °C (41 °F TO 95 °F) STORING: -20 °C TO +70 °C (-4 °F TO +158 °F)
HUMIDITY
OPERATING: 20% TO 80% RH (NON-CONDENSING/FROZEN) STORING: 5% TO 90% RH (NON-CONDENSING/FROZEN)
DIMENSÕES (L×P×A)
484 X 724 X 174 (19.1 X 28.5 X 6.9 IN)
WEIGHT (WITHOUT HDDS)
= 40 KG (88.2 LB)
